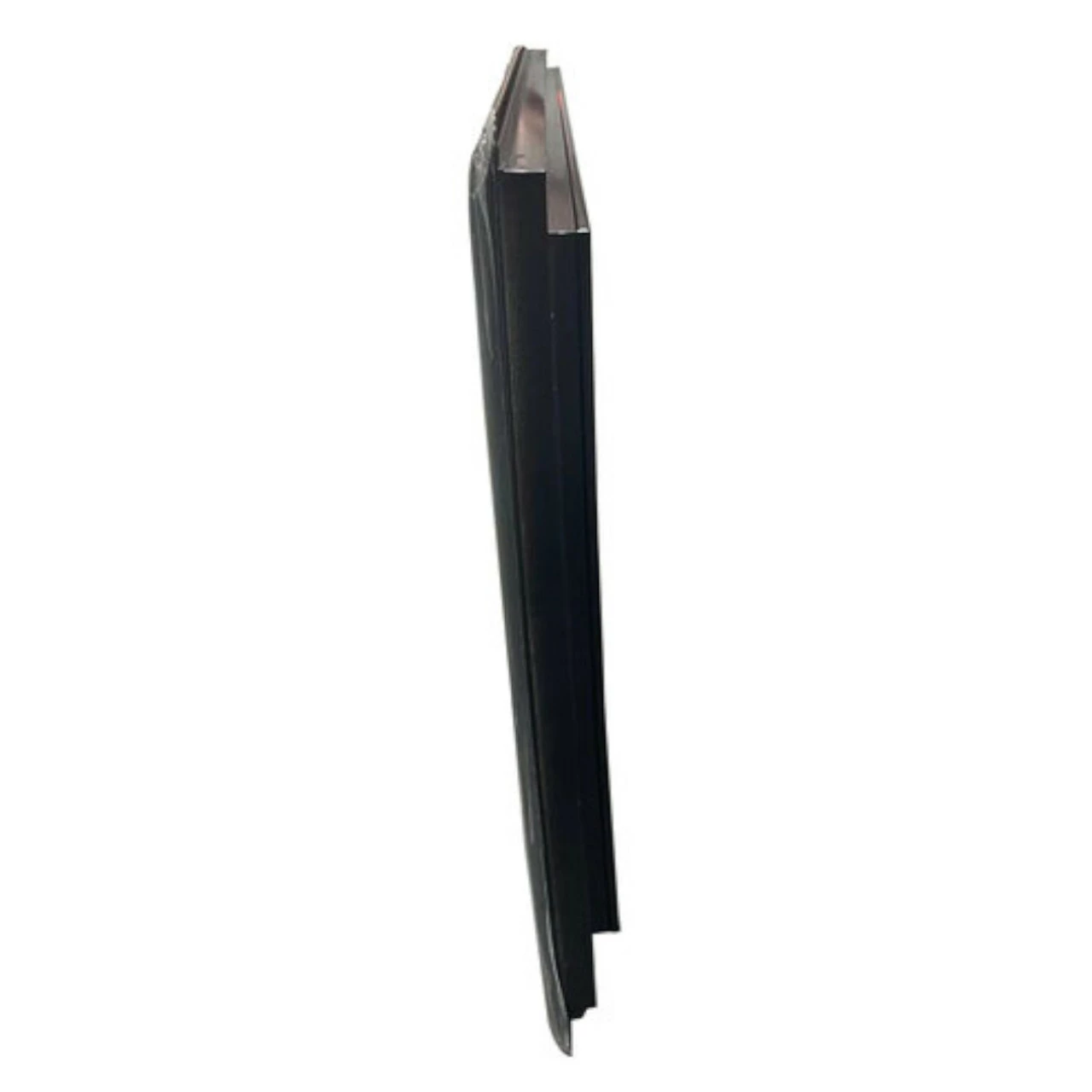

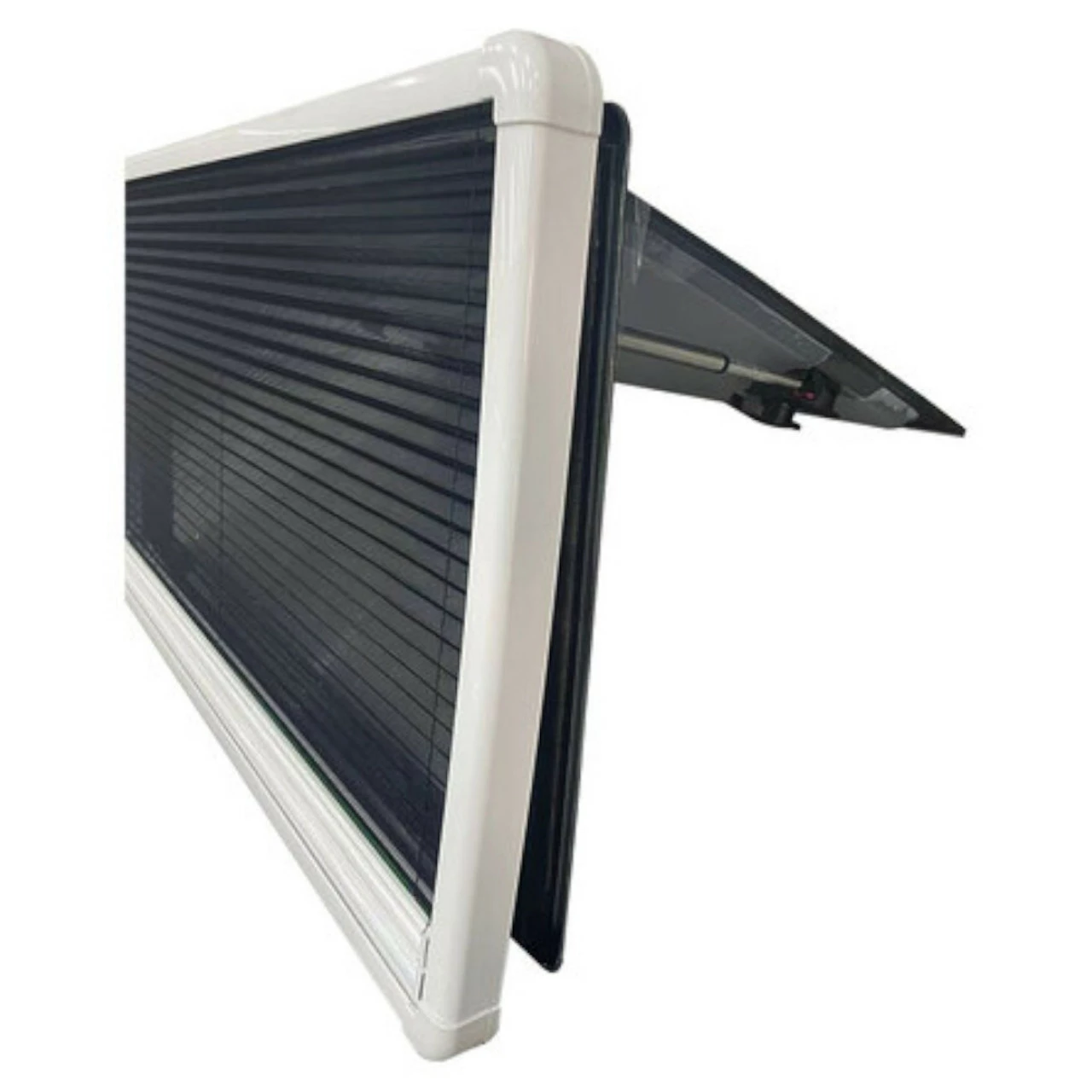

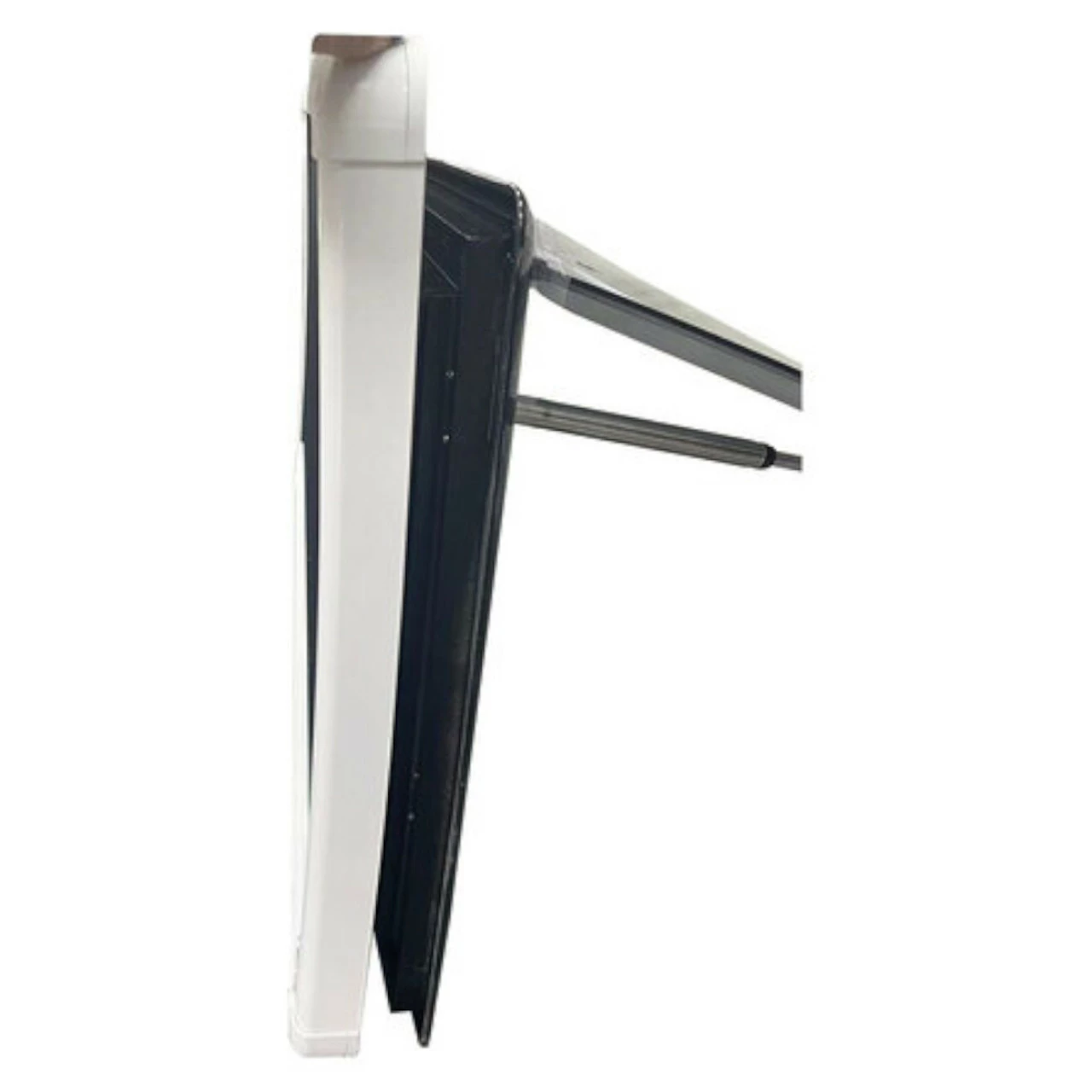

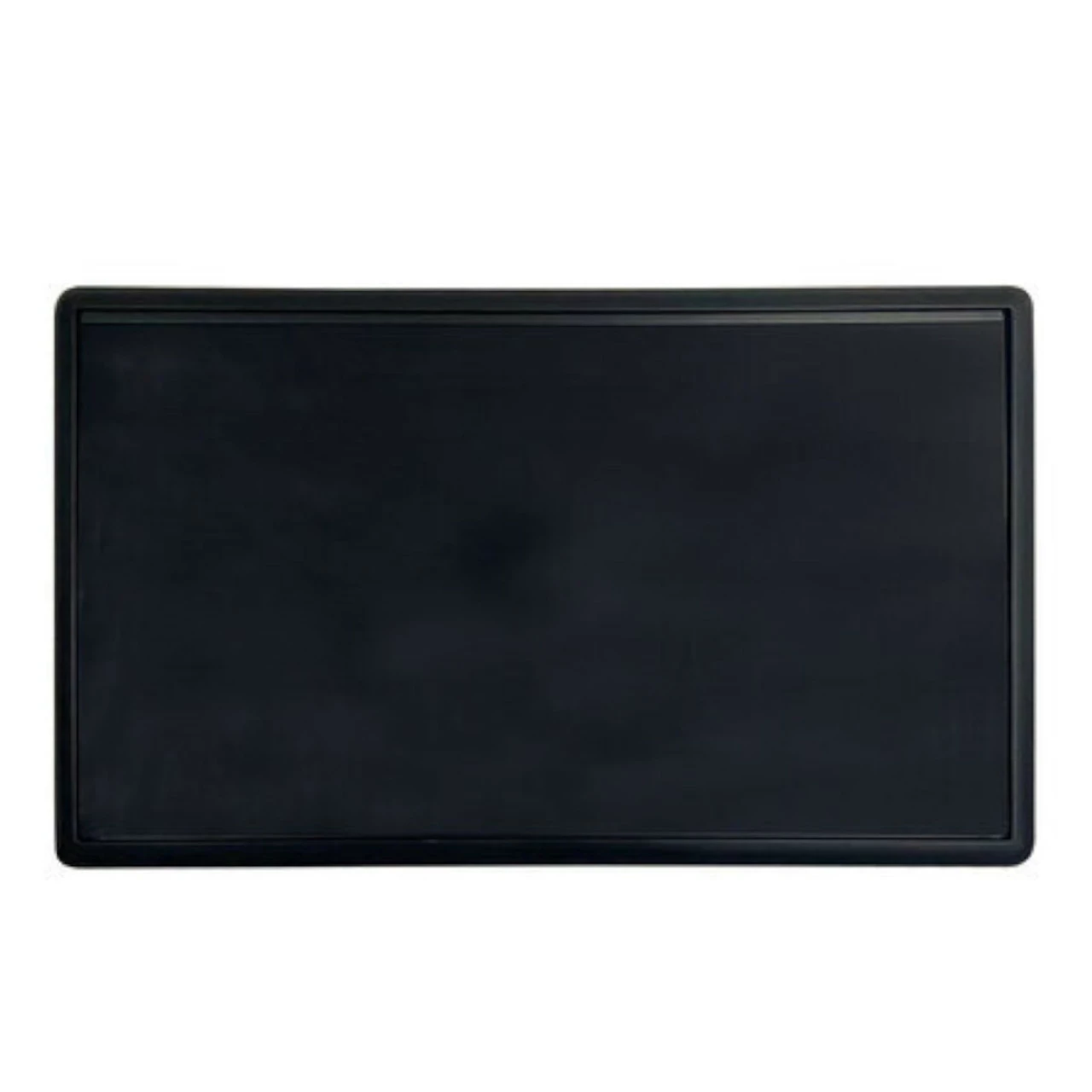

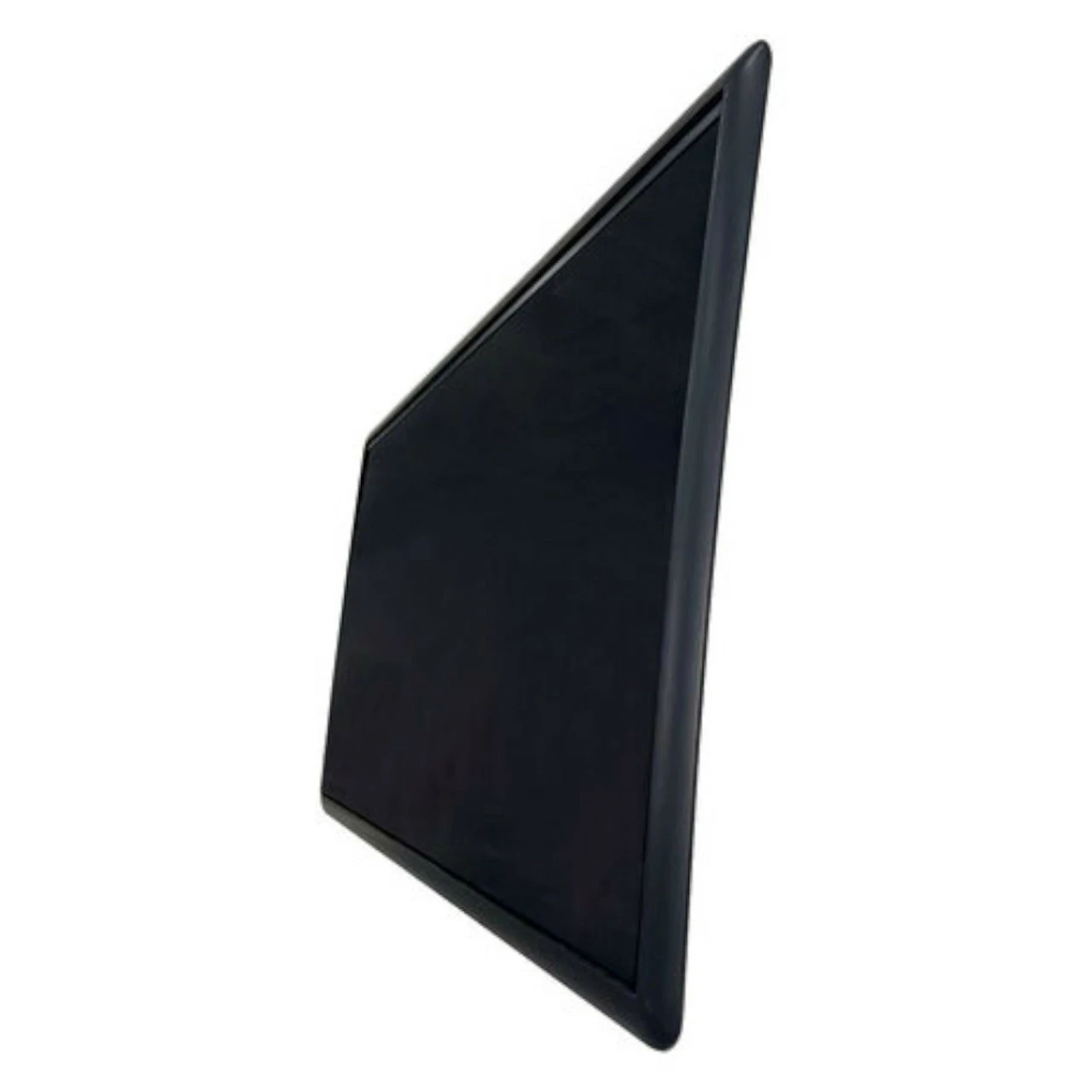

Adventurer Curved Frame Top Hinged Caravan Motorhome Windows

Aluminium black curved framed caravan motorhome campervan window

Curved framed aluminium double glazed UV resistant acrylic window available in a range of sizes. Constructed from aluminium with a black finish, these curved framed windows, with the exception of the 818 x 315mm version come complete with stainless steel strut rods. This smaller window frame has plastic strut rods instead.

Privacy is key

With a tinted double glazed window and pleated blind within a PVC frame, the Adventurer Curved Frame window adds privacy and helps to keep light out.

Easy installation

A window mounting frame wall thickness of 25-40mm makes for easy installation on most vehicles and a wide range of window sizes in a stylish black colour will compliment most colour schemes well.

Adventurer Curved Top Hung Hinged Windows Specifications

• Aluminium alloy flat frame finished in black
• Double glazed acrylic window
• UV resistant
• Double stainless steel struts (with the exception of 818 x315 frame)
• Two handle closures
• Pleated blind with PVC frame
• Wall thickness mounting size: 25-40mm frame
• Suitable for caravan motorhome or campervan

Adventurer Curved Top Hung Hinged Windows Sizes

Cut Out Size (mm) W x H	Overall Size (mm) W x H	Strut Rod Type	Part No.
490 x 500	525 x 535	Stainless Steel Strut Rods	VAN-490×500
500 x 300	535 x 335	Stainless Steel Strut Rods	VAN-500×300
700 x 400	735 x 435	Stainless Steel Strut Rods	VAN-700×400
818 x 315	853 x 350	Plastic Strut Rods	VAN-818×315
900 x 500	935 x 535	Stainless Steel Strut Rods	VAN-900×500
960 x 450	995 x 485	Stainless Steel Strut Rods	VAN-960×450
985 x 465	1020 x 500	Stainless Steel Strut Rods	VAN-985×465
1000 x 500	1035 x 535	Stainless Steel Strut Rods	VAN-1000×500

Technical Specifications:
