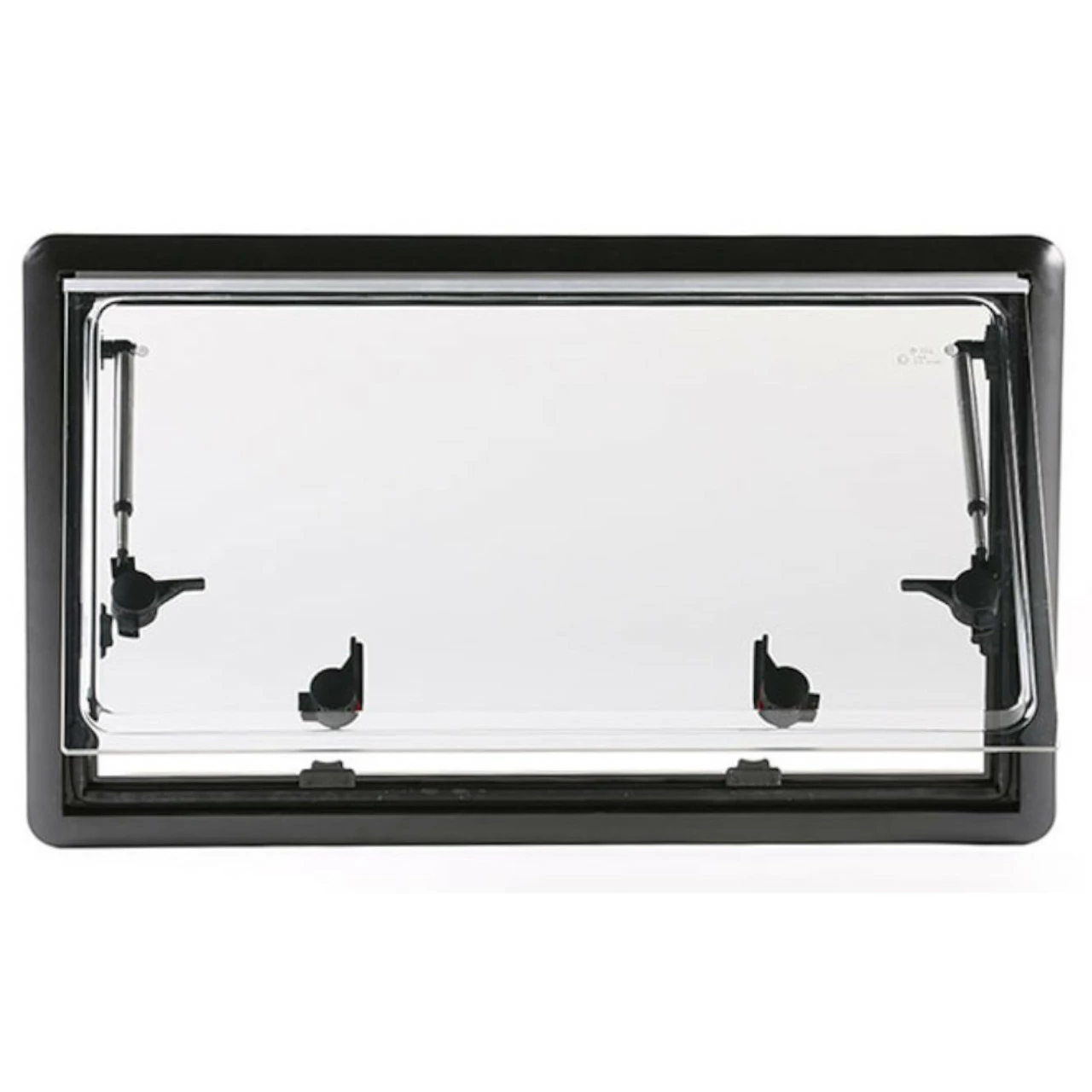

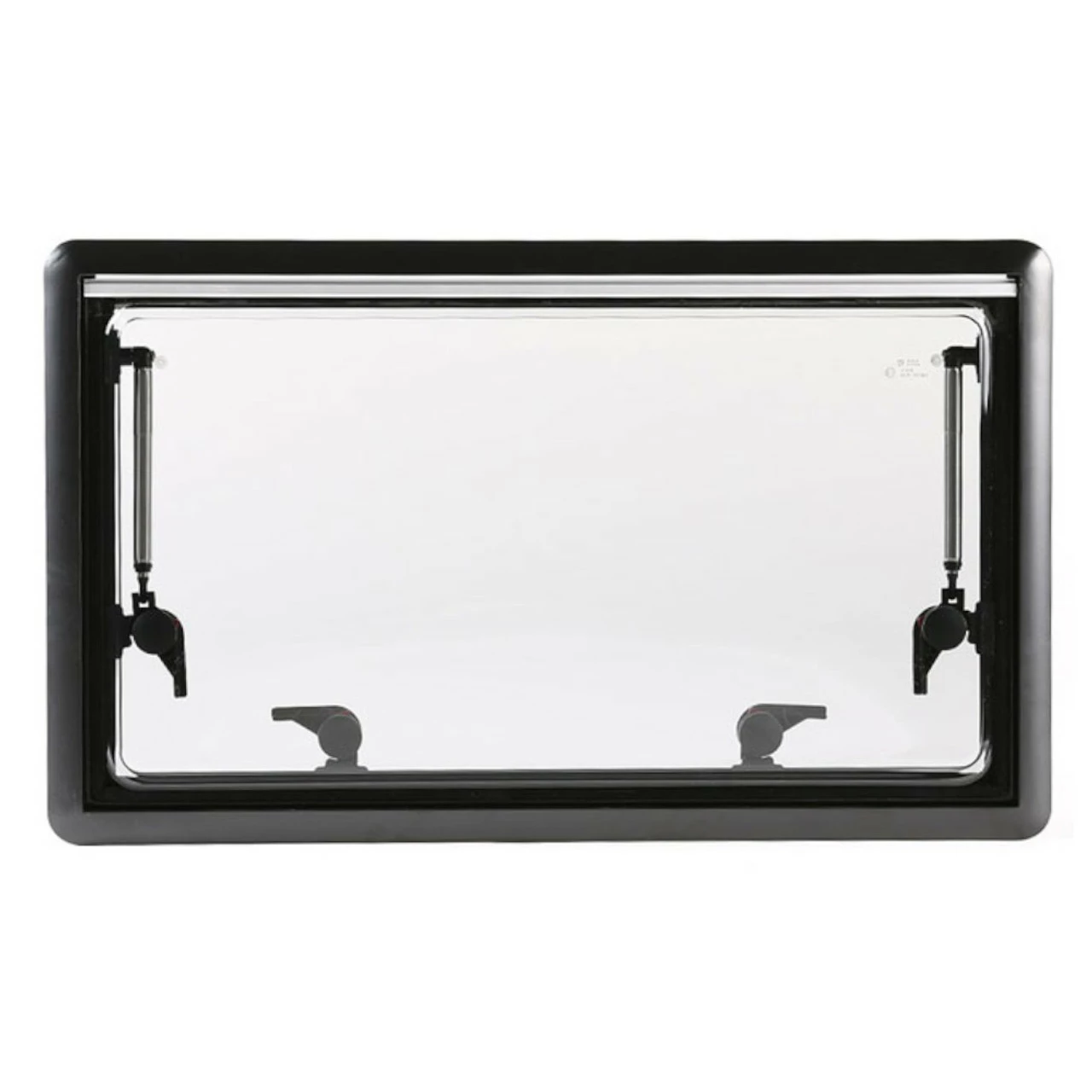

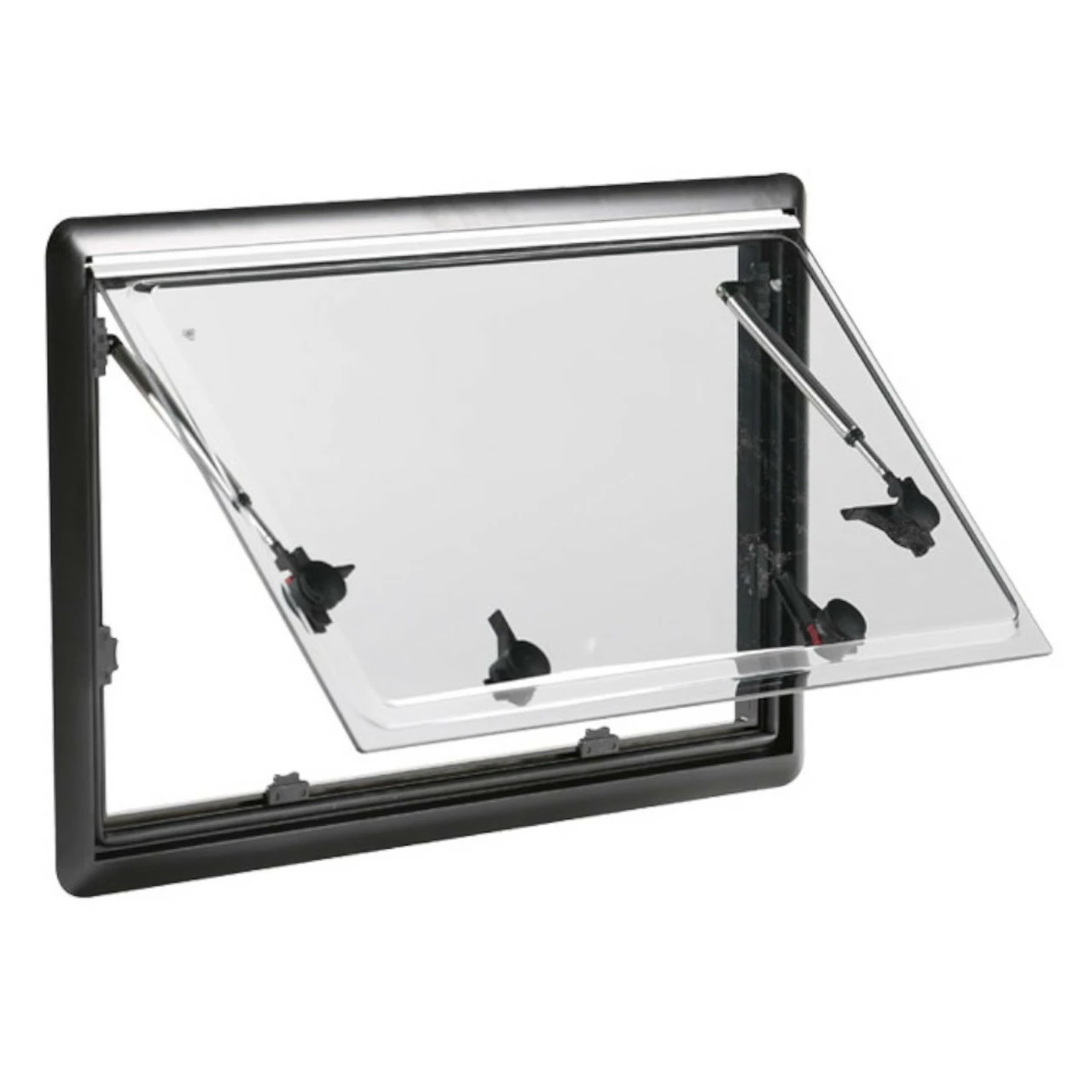

Adventurer Top Hinged Caravan Motorhome Windows

Aluminium black framed caravan motorhome campervan window

A premium double glazed UV resistant acrylic window with a pleated blind available in a range of sizes.

Sleek aluminium hinged framed caravan and motorhome window

Constructed from aluminium with a black finish, these windows are UV resistant to extend the life of the units. All windows, with the exception of the 700 x 300mm version come complete with stainless steel strut rods, this individual unit has plastic strut rods instead.

Pleated blind for added privacy

Combined with a slight window tint and pleated blinds within a PVC frame, these Adventurer Top Hung Hinged windows provide privacy when needed.

Easy installation

With a defined cut out size and mounting frame wall thickness of 22-35mm, installation is easy and is ideal for van conversion projects.

Adventurer Top Hung Hinged Windows Specifications

• Aluminium alloy frame finished in black
• Double glazed acrylic window
• UV resistant
• Double struts
• Two handle closures
• Pleated blind with PVC frame
• Wall thickness mounting size: 22-35mm frame
• Suitable for caravan motorhome or campervan

Adventurer Top Hung Hinged Windows Sizes

Cut Out Size (mm) W x H	Overall Size (mm) W x H	Strut Rod Type	Part No.
500 x 450	545 x 495	Stainless Steel Strut Rods	CLR-500×450
500 x 500	545 x 545	Stainless Steel Strut Rods	CLR-500×500
600 x 350	645 x 395	Stainless Steel Strut Rods	CLR-600×350
700 x 300	745 x 345	Plastic Strut Rods	CLR-700×300
700 x 400	745 x 445	Stainless Steel Strut Rods	CLR-700×400
700 x 450	745 x 495	Stainless Steel Strut Rods	CLR-700×450
800 x 500	845 x 545	Stainless Steel Strut Rods	CLR-800×500
900 x 450	945 x 495	Stainless Steel Strut Rods	CLR-900×450
900 x 500	945 x 545	Stainless Steel Strut Rods	CLR-900×500
1000 x 500	1045 x 545	Stainless Steel Strut Rods	CLR-1000×500
1100 x 550	1145 x 595	Stainless Steel Strut Rods	CLR-1100×550

Technical Specifications:
