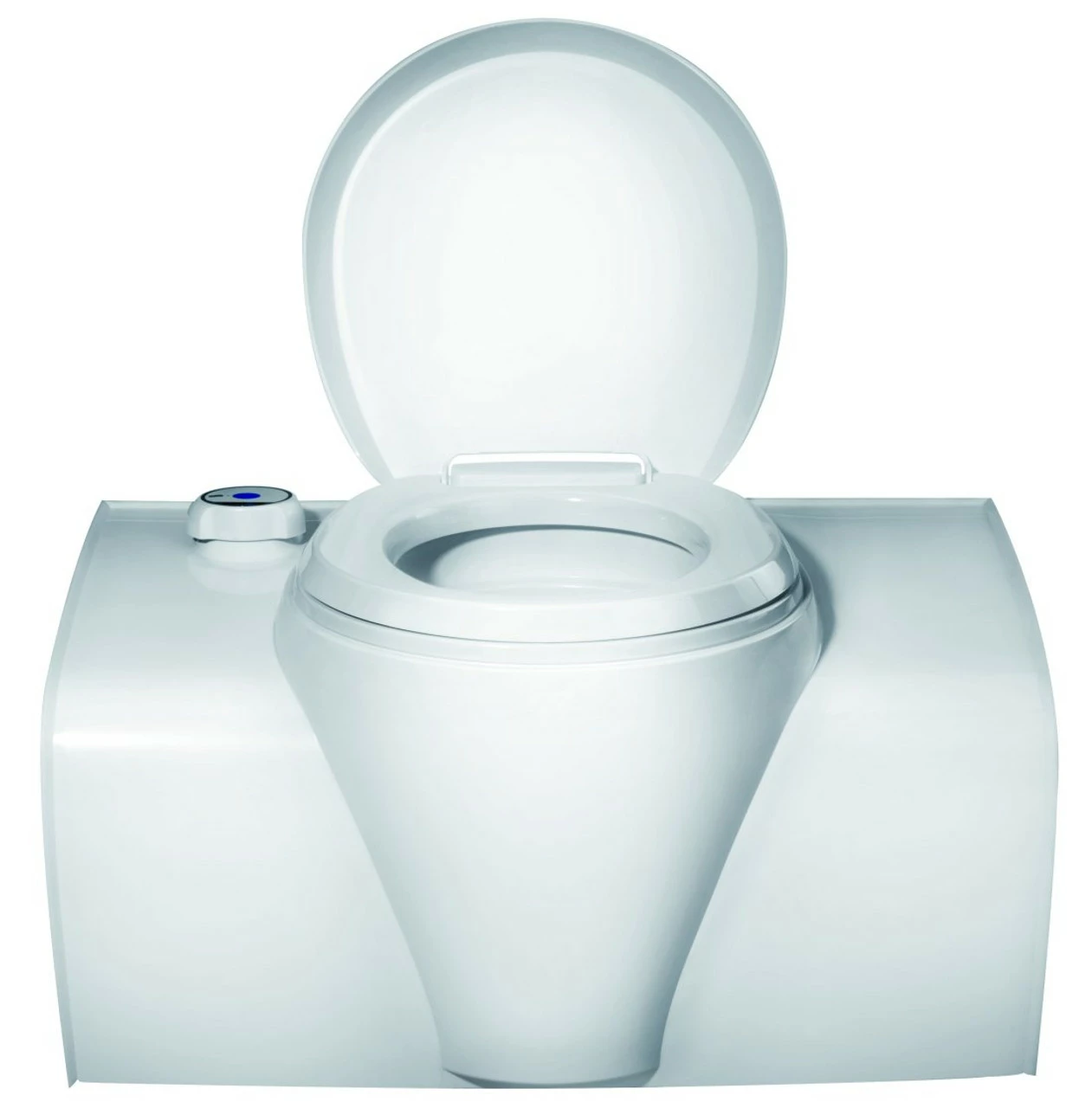

Thetford C502X Caravan & Motorhome Cassette Toilet

Thetford C502X Caravan Motorhome & Campervan Cassette Toilet

A high quality self contained Cassette Toilet for use in caravan, campervan or motorhome which features its own independant 16.5 litre flushing water tank (ideal for vehicles without their own onboard water tank!), the Thetford C502X fixed bench Cassette Toilet features a waste tank capacity of 19.7 litres and comes with the convenience of electric flush.

The built-in Cassette Toilet consists of two parts: a permanently installed toilet and a removable waste-holding tank. A useful 3 level indicator on both tanks lets you know when the waste tank needs to be emptied or the water tank needs filling, and you can access and remove the waste  tank through a small door on the outside of the motorhome, campervan or caravan.

Additionally, the Thetford C502X caravan and motorhome Cassette Toilet also benefits from a retractable handle on the holding tank and comes with wheels on the base, both of which provide an enhanced ease of transportation. A removable working mechanism is also included with the C502X Cassette Toilet, making the inside of the tank easier to clean.

This terrific caravan and motorhome toilet from Thetford is suitable for installation against the external side wall or rear wall of the caravan, motorhome or campervan but can also be easily installed against an interior wall in your vehicle/vessel, provided there is level access on the other side, to enable the waste tank removal.

Thetford C502X Caravan and Motorhome Cassette Toilet Features:

• Please note this product must be fitted with a shower tray and comes without kicker plate
• Highest level of seating comfort on the market
• Lightweight, high-quality, durable white plastic
• Quiet yet powerful flushing system with full bowl coverage – 12V Electric
• 3 year warranty
• Waste-holding tank indicates when it needs emptying
• Waste-holding tank on wheels
• Vent button for emptying without splashing
• Automatic pressure release vent prevents gas build-up, ensures splash-free tank opening
• Built-in rotating spout for emptying
• Waste tank capacity: 19.7L
• Flush water tank capacity: 16.5L
• Dimensions: H502 x W739 x D410mm
• **Please Note** This product usually requires the purchase of the Thetford ‘Access Door’ This provides neat access for removal of the waste tank.

Please note: The Thetford C502X Caravan & Motorhome Cassette Toilet is available as either a right or left hand model. Please use the drop down menu at the top of the page to confirm your choice of purchase.

• Right handed model: If sat on the toilet the waste tank slides out to the Right.
• Left handed model: If sat on the toilet the waste tank slides out to the Left.

User Manual:

 Installation Manual :





---







Technical Specifications:

Dimensions HxWxD (mm):

502 x 739 x 410

Seating Height (mm):

492

Bowl Material:

White Plastic

Flushing System:

Electric

Capacity Waste Tank (L):

19.7

Capacity Water Tank (L):

16.5

Net Weight (kg):

9.5
