Thetford Topline 922 Hob and Sink Campervan Conversion Kit 1

Stylish hob and sink kit with tap, tanks and fittings

Not sure what kit you need for your van conversion? We’ve put together this kit to give you all the essentials for you new campervan. Ideal for conversions, or for restorations of caravans, motorhomes and boats, this hob and sink kit includes two jerry cans for fresh and waste water, alongside a tap, 12v pump and piping to give you a complete water system. We’ve also included d a gas regulator and hose or piping, depending on the option you select above, for your gas cooking.

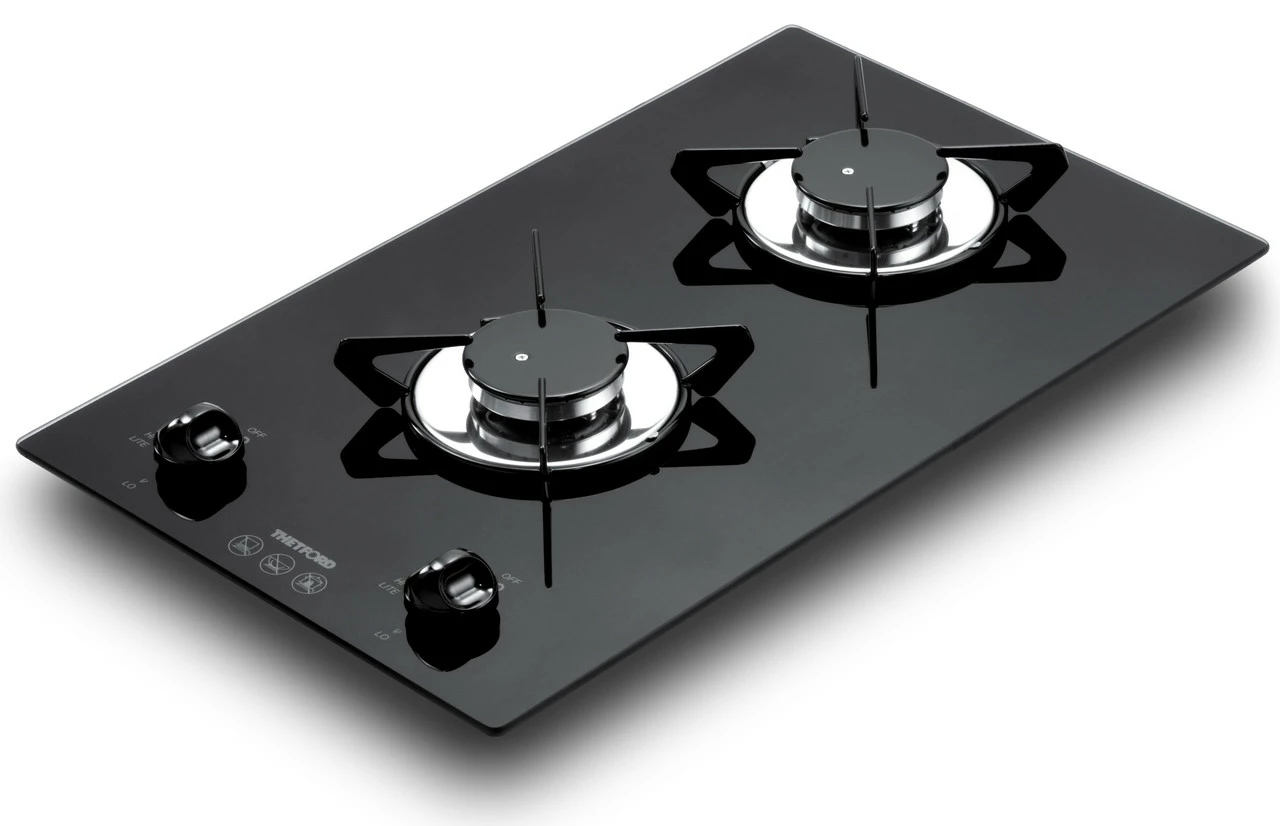

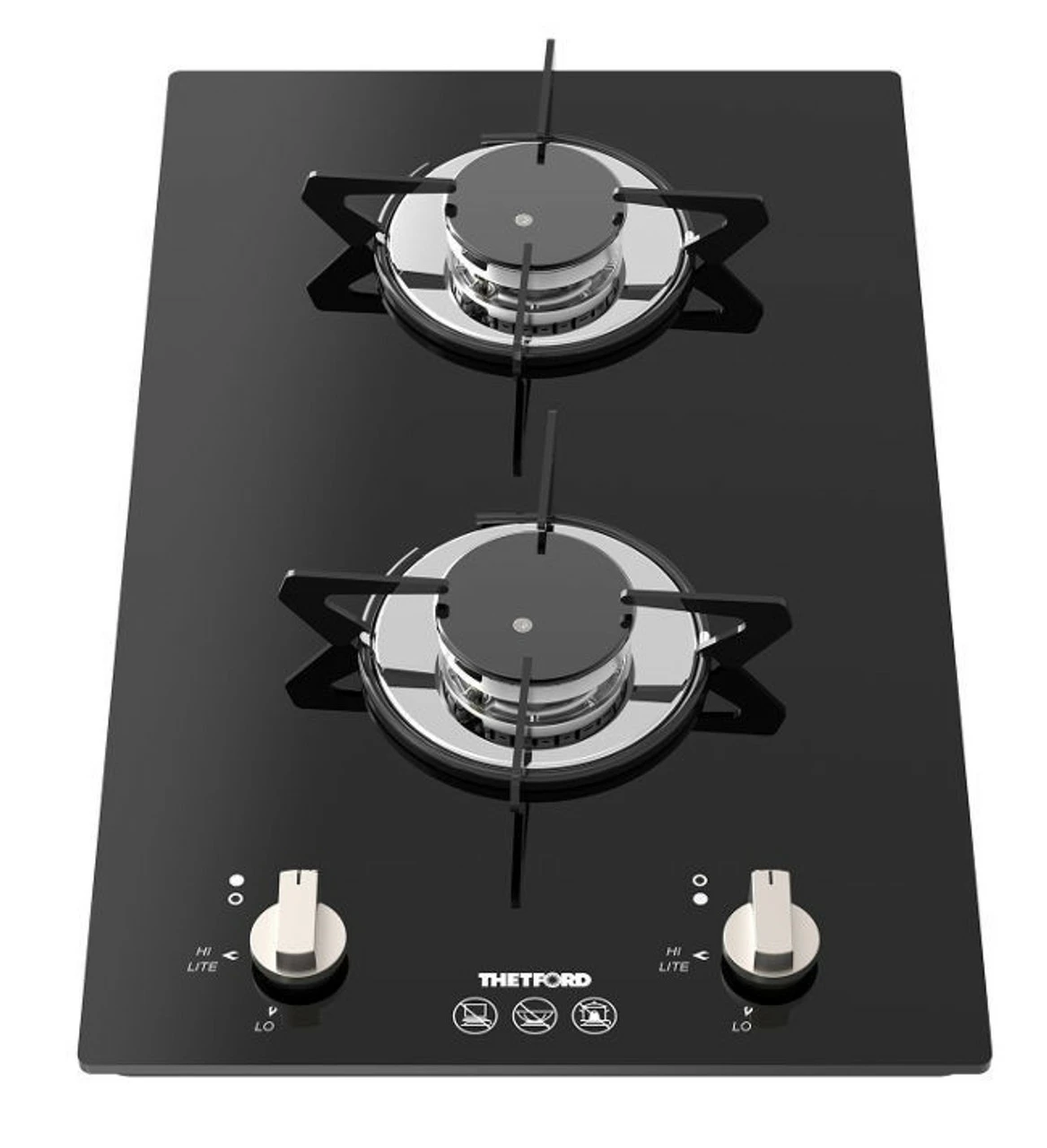

Includes Thetford’s sleek 922 hob cooker

This kit uses Thetford’s Topline 922 hob, featuring 12v ignition to make your cooking as easy as it is at home. This simple and refined cooker is powered by two 1.5kW gas hob burners, each mounted in a minimalist black glass panel.

Customize to match your camper

We’ve provided a range of options so you can customise this kit to fit your needs. Please see below for the full contents of what is supplied with each regulator option, and use the options above to select your choice. We recommend the bulkhead regulator for permanent installations.

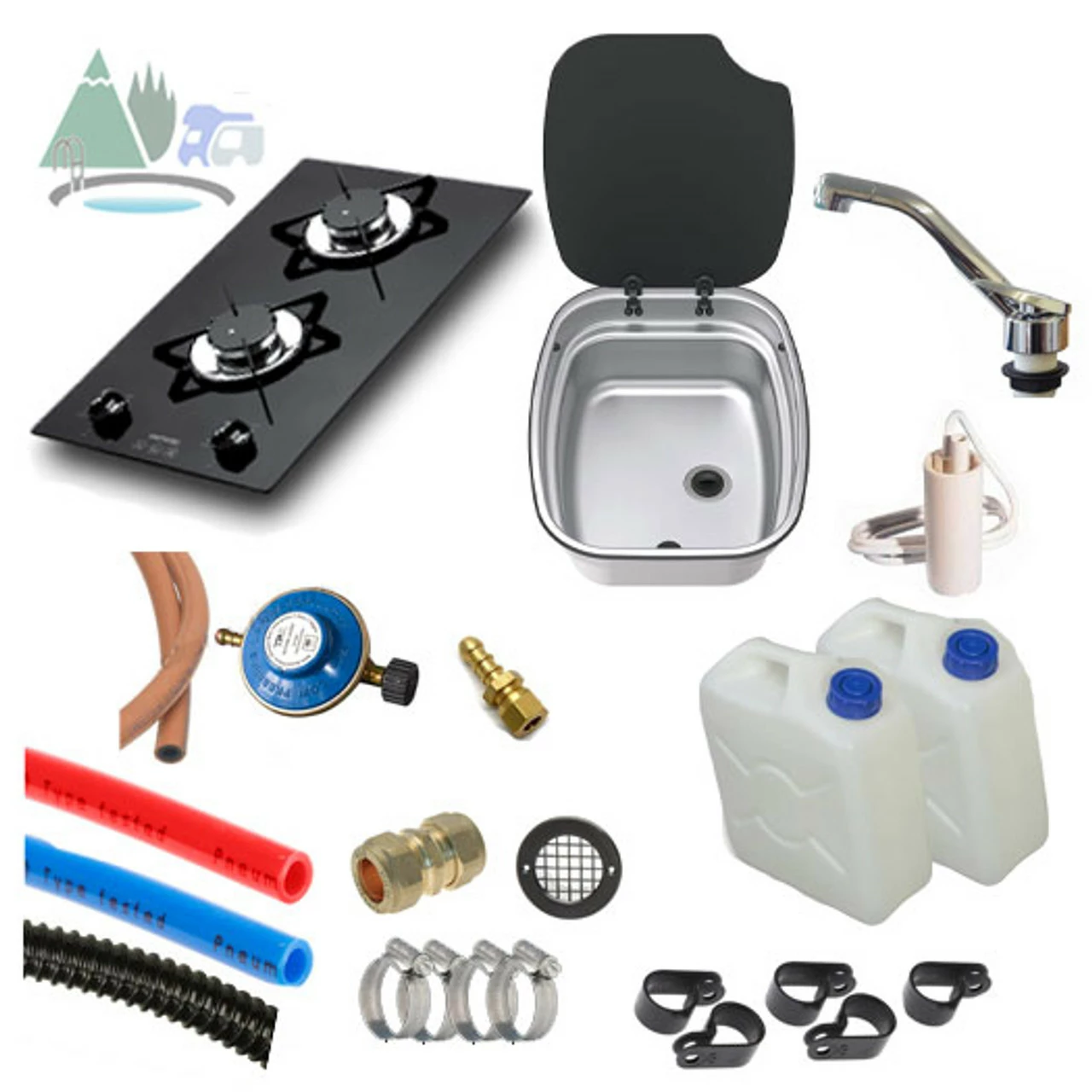

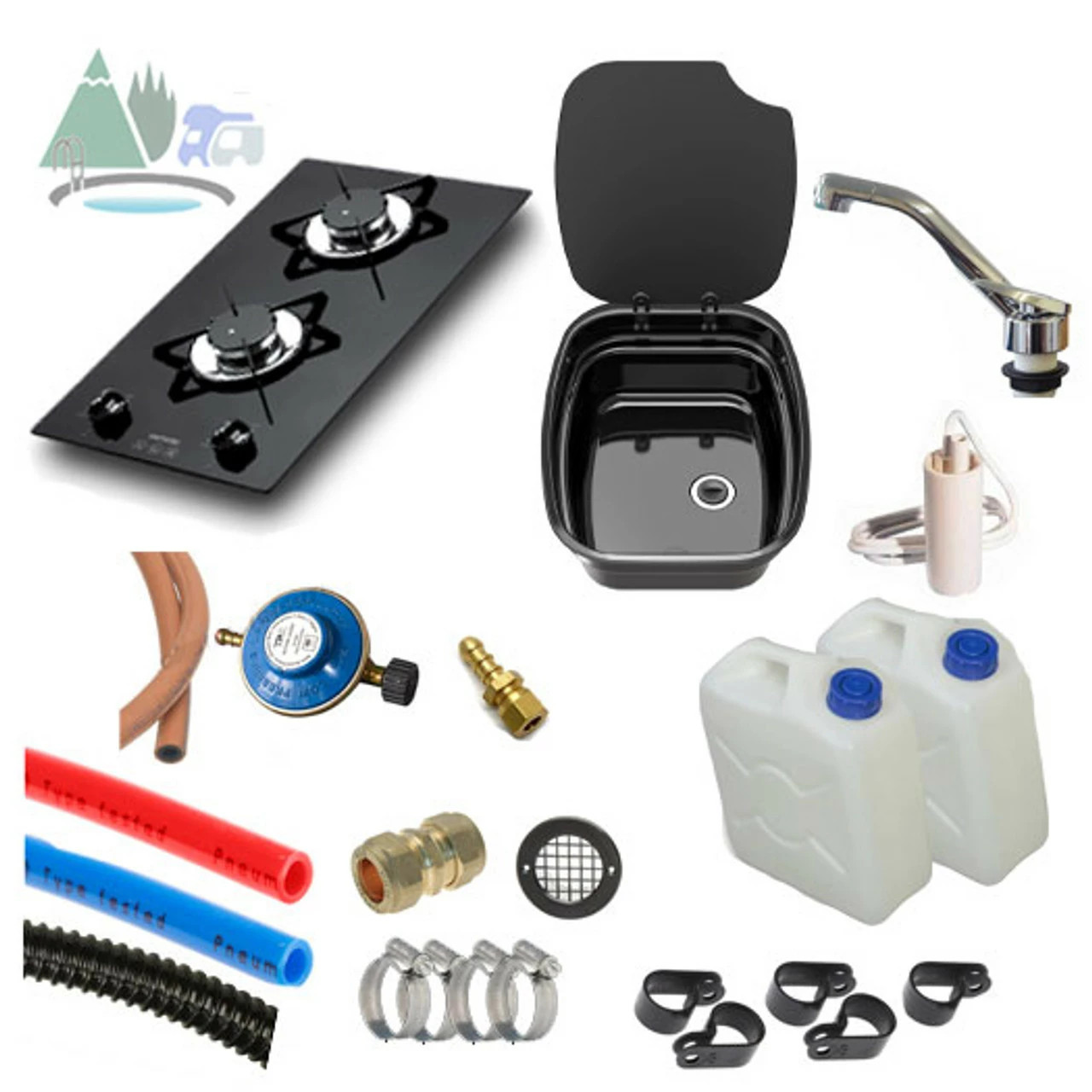

Thetford Rectangular Hob and Sink Conversion Kit 1:

•    Thetford Topline 922 hob

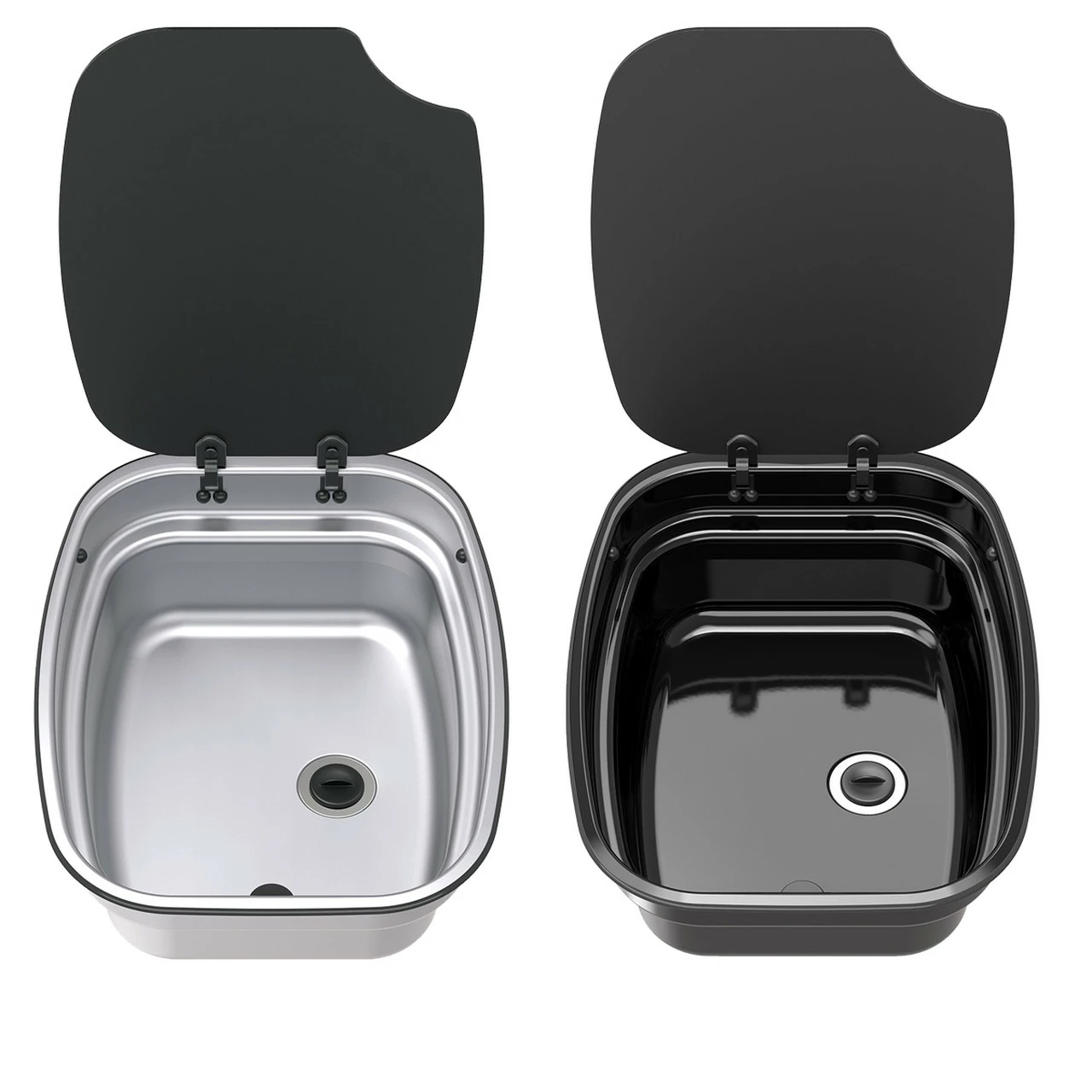

•    Thetford Argent sink
•    Reich Samba Micro Switch Cold Tap or Hot & Cold Tap
•    Whale Submersible Pump
•    2 x 9.5L Jerry Cans

•    2mtr x 10mm Cold Pipe
•    2mtr x 20mm Waste Pipe
•    2mtr x 10mm Hot Pipe (Only available when mixer tap selected)
•    1 x 75mm Floor Vent

•    Pack of x 5 P Clips
•    4 x Jubilee Clips
•    1x 8mm Straight Compression Coupling

Camping Gaz:

•    1x Camping Gaz Regulator
•    1x 8mm Compression Nozzle
•    1mtr LPG Gas Hose

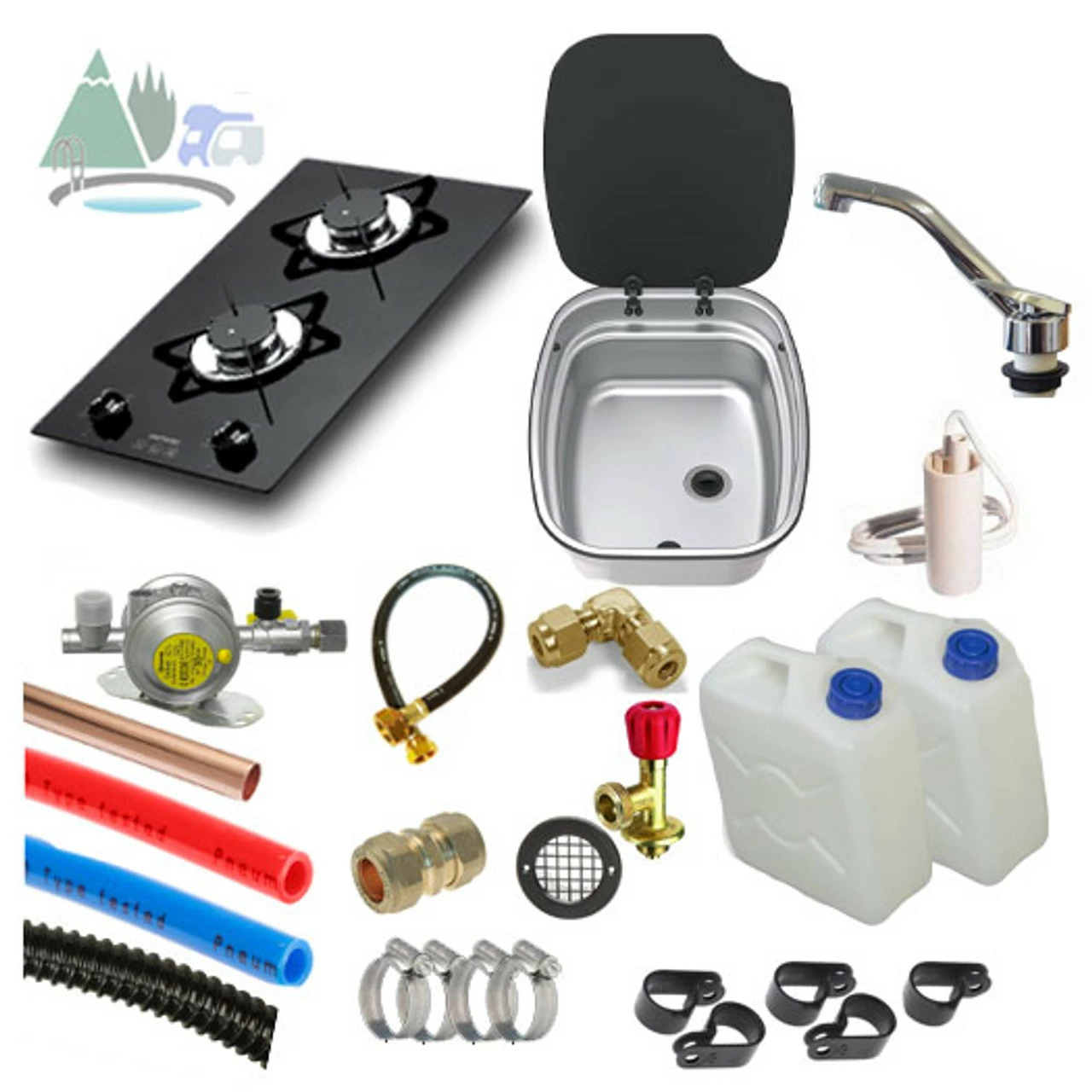

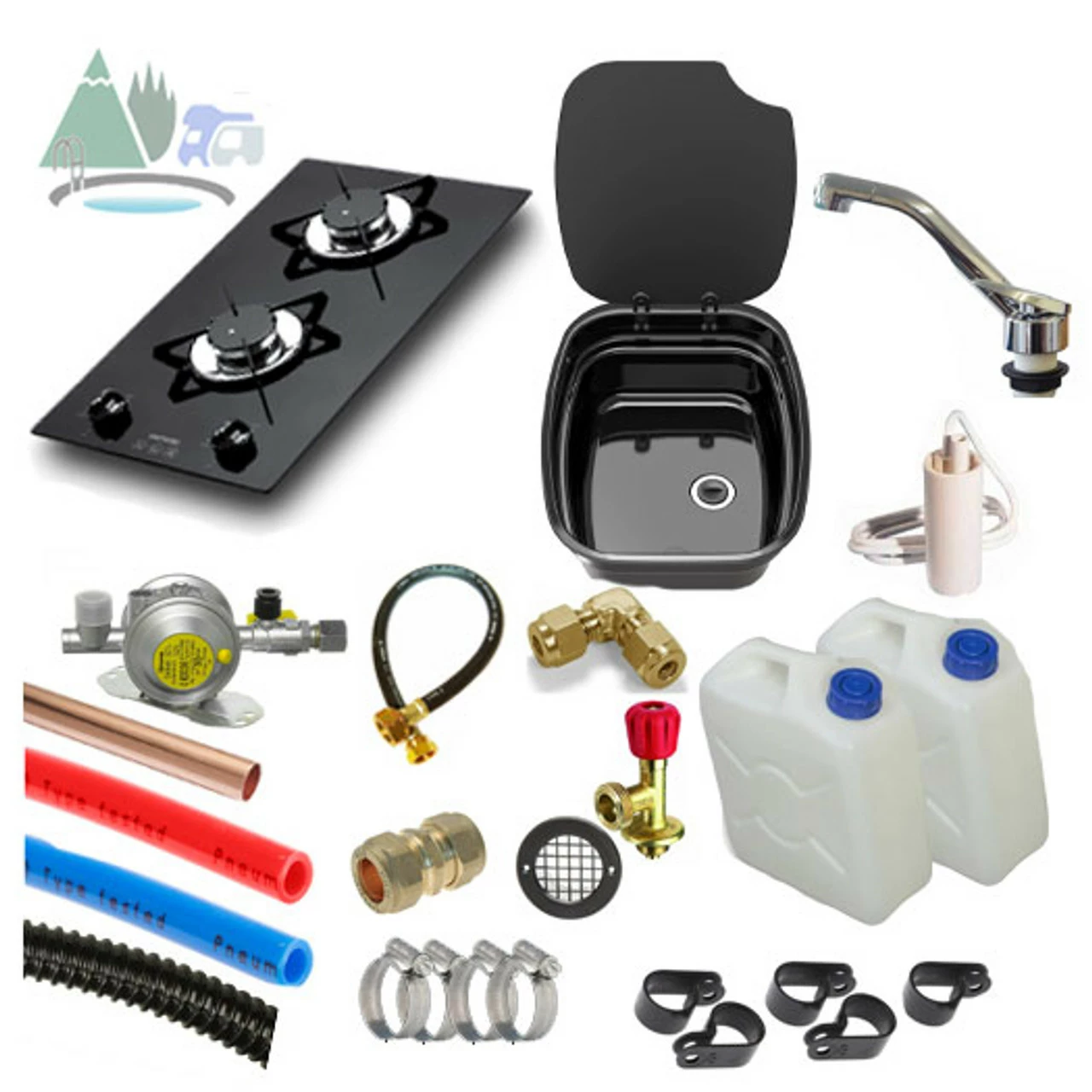

Bulk Head Option includes:

•    1 x 8mm Bulkhead Regulator
•    1 x 45cm Pigtail
•    1 x 8mm 90° Compression Elbow
•    1 x Gaz Adapter
•    2mtr x 8mm Copper Pipe

Technical Specifications:

Hob dimensions:

H95 x W305 x D500 mm

Hob Worktop Cut-Out:

W285 x D485 mm

Hob Weight:

4.8 Kg

Hob burners:

2 x 1.5kW

Total Heat Output:

3.0 kW

Ignition:

Yes, 12v

Sink Overall dimensions:

H153 x W360 x D470 mm

Sink Worktop cut-out dimensions:

W335 x D430 mm

Sink Inside bowl dimensions:

H99 x W290 x D368 mm

Sink water drain (included):

19mm
