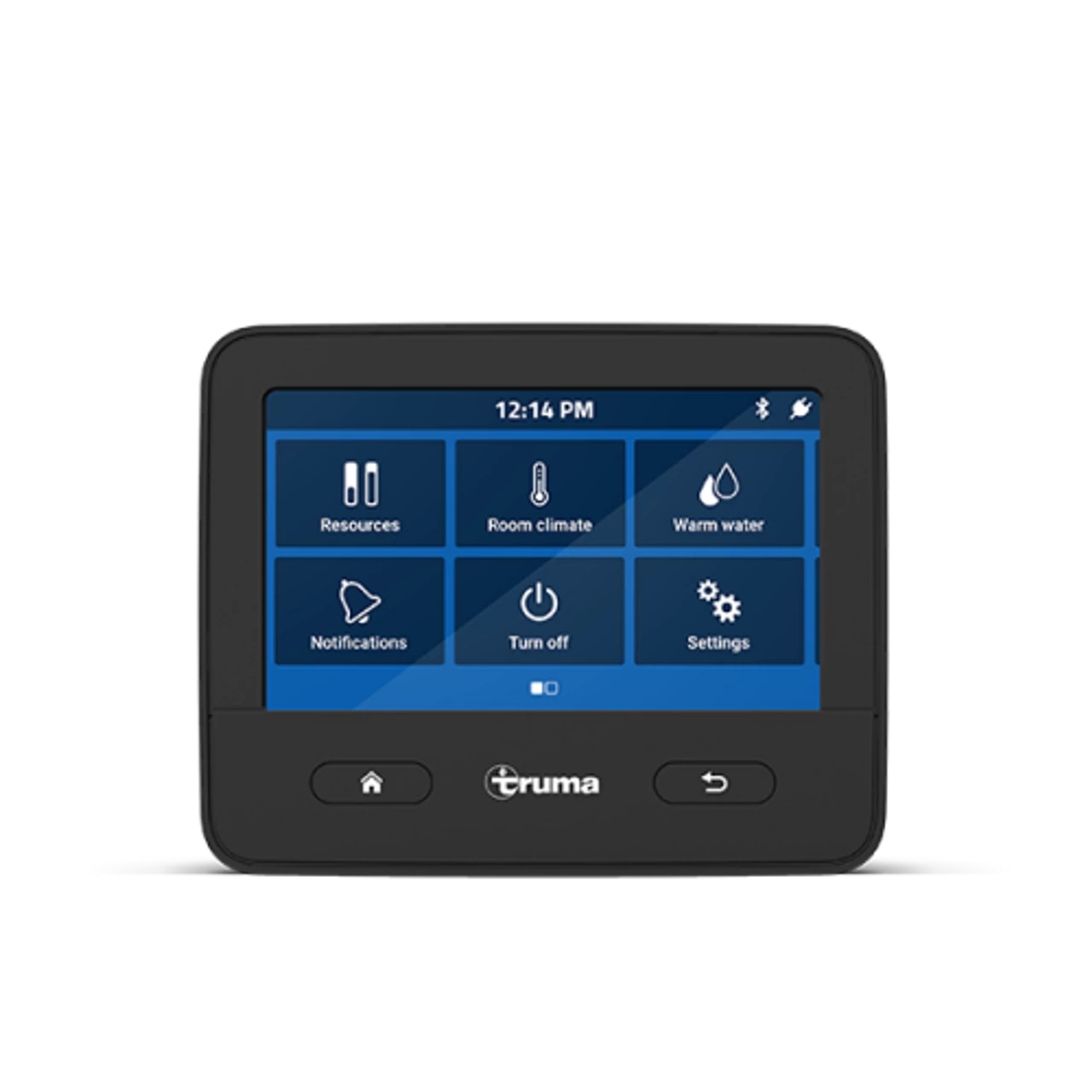

Truma iNet X Control Panel

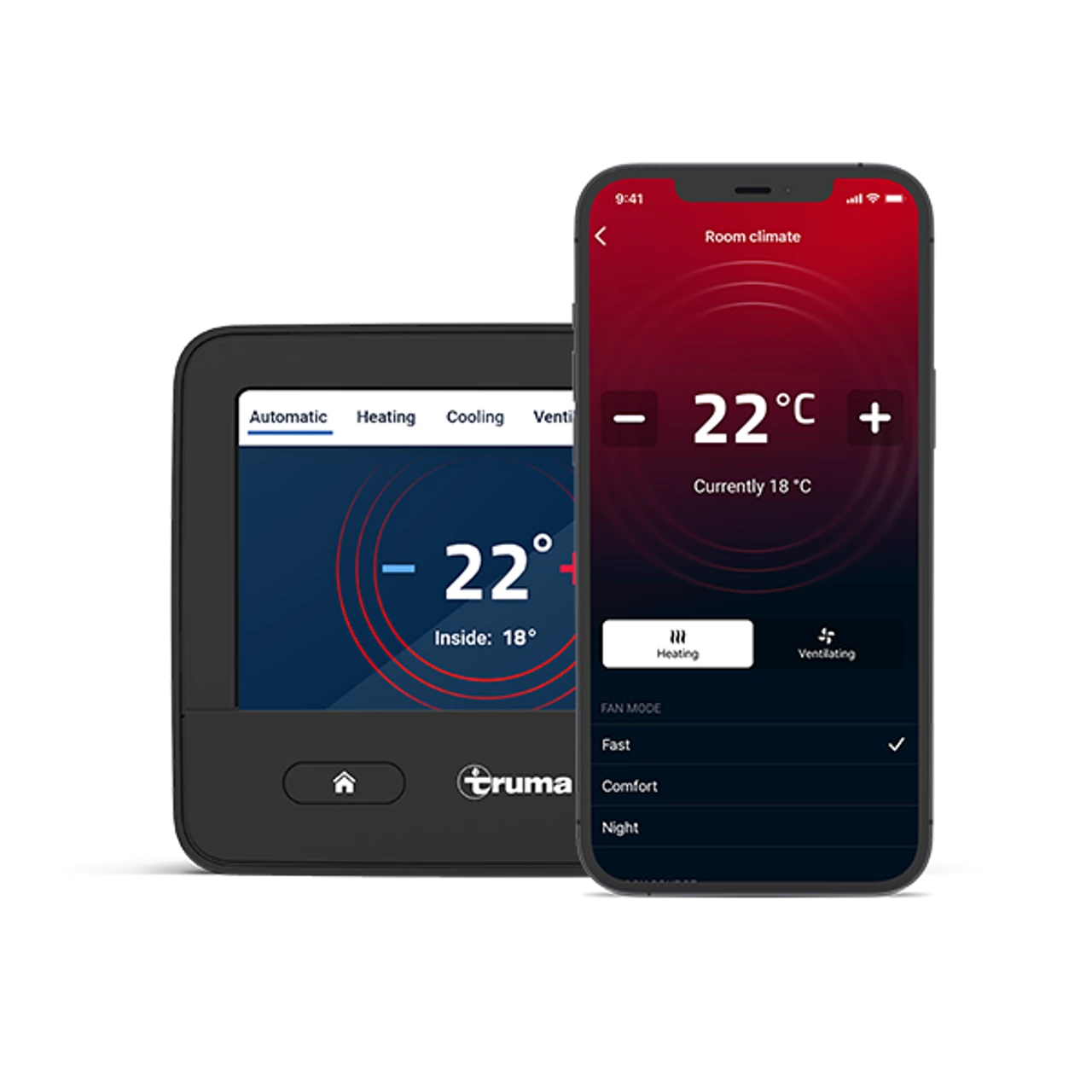

Control your Truma air conditioner & heater remotely from your phone with the iNet X app

The Truma iNet X is Truma’s next-generation control panel, allowing you to control your heating and cooling from your smartphone via Bluetooth. Replacing the original iNet, the Truma iNet X System controls your Truma campervan, caravan or motorhome appliances easily from your smart phone or tablet. All you need to do is download the free Truma iNet X App. The smart interface also allows you to control & check on the room temperature in your caravan or motor home.

With future software updates

The iNet X has been designed with easy software updates in mind, with Truma promising new features are set to follow.

Specifications

• Power supply: 12V (8v to 16v)
• Average power consumption: 130 mA
• Interfaces: TIN bus, CI bus, CAN bus, Bluetooth
• Touchscreen: TFT-LCD 4.3″ (resistive)
• Bluetooth: Class 2
• Operating temperature range: -30 °C to +60 °C
• Weight: approx. 150 grams
• Please note that the iNet X only currently supports wireless via Bluetooth. Smartphone not included.

Operating Manual:



Installation Manual:
